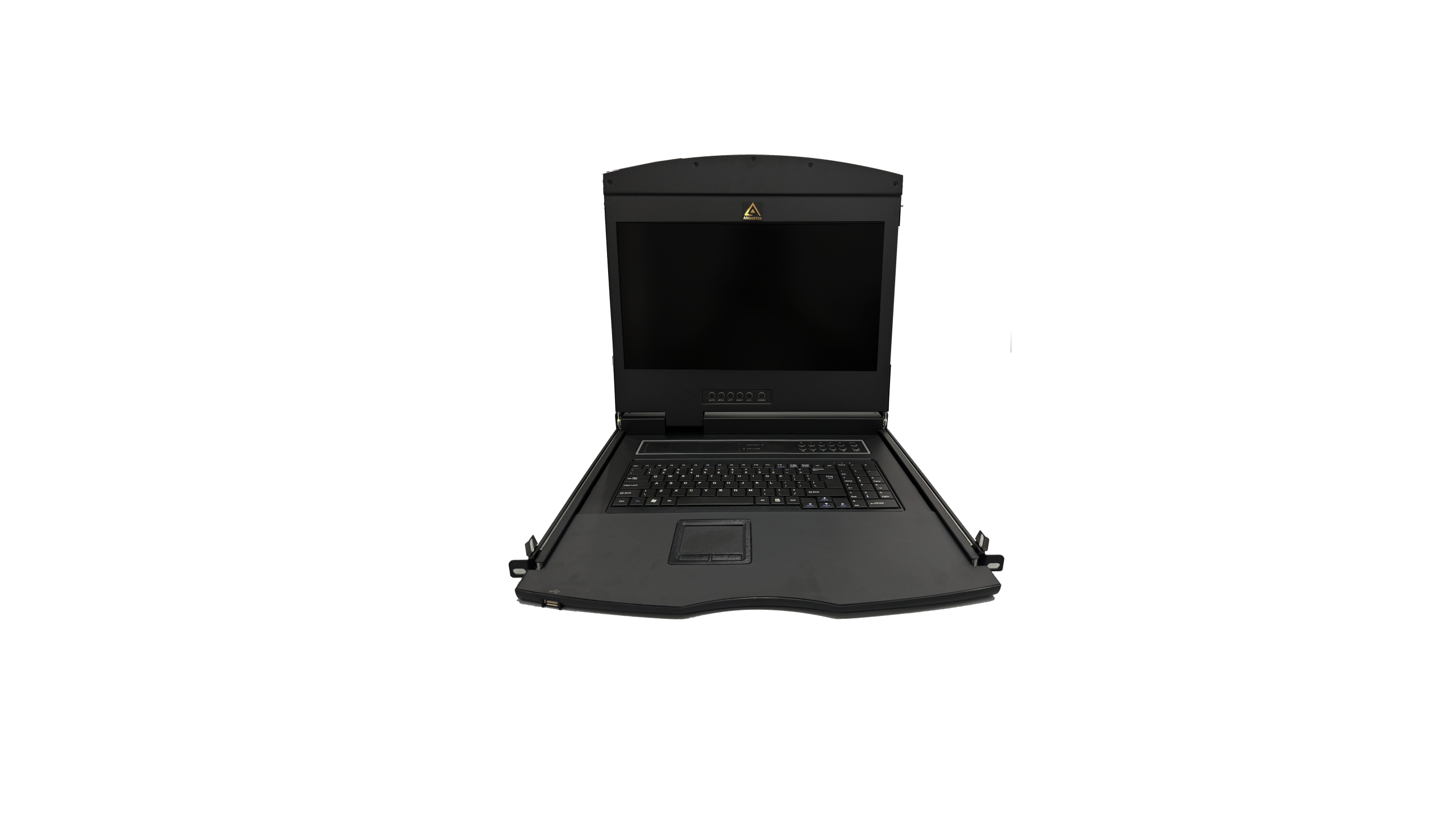

17" 1U single rail LCD w/8 ports HDMI KVM Switch - AL-H708L

Angustos AL-H708L LCD KVM Switch is optimized for high density Rack in modern Data Center. Supporting Full HD resolution for high end computers / servers.
Integrating a 17.3
LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The short-depth design ultilized for narrow space for short-rack mounting in condensed area. The AL-H708L can control up to 8 computers; with 128 additional KVM switches are cascaded on two more level, a single AL-H708L LCD KVM Switch can control up to 2048 computers.
In addition, the AL-H708L included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved, the AL-H708L LCD KVM Swtich has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• Front USB for back up mouse-keyboard.

• LCD KVM console with an 17.3” LED-backlit 16:9 LCD monitor in a single rail design.

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.

• Extender compatible – Can be combined with Angustos KVM Extender up to 60m.

Flexible compatibility

• Superior video quality – up to 1920 x 1080 @60Hz; DDC2B; 16.7 Mil. Color.

• Cascade up to 2048 computers from a single console (With compatible KVM Switches)

• Auto USB and PS/2 (with Adapter) interface sensing.

• Keyboard and mouse emulation (PS/2 and USB) for seamless switching).

• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).
